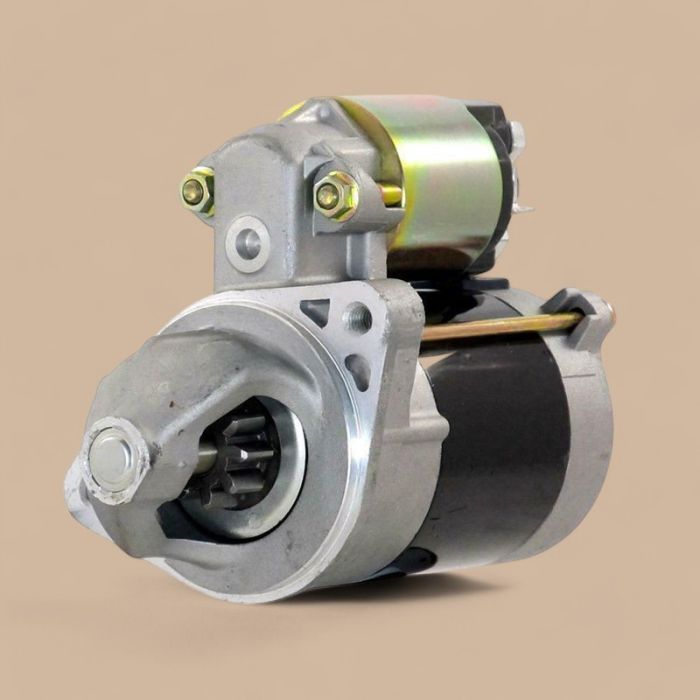

Kawasaki Starter Motor 21163-2120 Compatible for Kawasaki Engine FD671D FD711D FD750D FD791D FD795D
Application:
Fit for following models: Make Model Year Engine Remarks Cub Cadet 5254E 04-06 All Kawasaki 25HP Gas Denso PMGR, 12V/ 9T, 0.6kW Cub Cadet 5254L 04-06 All Kawasaki 25HP Gas Denso PMGR, 12V/ 9T, 0.6kW Cub Cadet 7252 98-03 All 3-46 (20HP) Gas Denso PMGR, 12V/ 9T, 0.6kW Cub Cadet 7252 98-03 All Kawasaki 25HP Gas Denso PMGR, 12V/ 9T, 0.6kW Cub Cadet 7254 98-03 All 3-46 (20HP) Gas Denso PMGR, 12V/ 9T, 0.6kW Cub Cadet 7254 98-03 All Kawasaki 25HP Gas Denso PMGR, 12V/ 9T, 0.6kW Cub Cadet M60-KW LC Tank 04-06 All Kawasaki 29HP Gas Denso PMGR, 12V/ 9T, 0.6kW Cub Cadet M72-KW LC Tank 05-06 All Kawasaki 29HP Gas Denso PMGR, 12V/ 9T, 0.6kW Toro Z287L Z Master 01-03 All Kawasaki 27HP Gas Denso PMGR, 12V/ 9T, 0.6k Toro Z580 Z Master 08-09 All Kawasaki 29HP Gas Denso PMGR, 12V/ 9T, 0.6kW Toro Z587L Z Master 04-06 All Kawasaki 27HP Gas Denso PMGR, 12V/ 9T, 0.6kW Toro Z589 Z Master 2007 All Kawasaki 29HP Gas Denso PMGR, 12V/ 9T, 0.6kW
Replace Part Number: Kawasaki:21163-2120,211632120,21163-2151,211632151,21163-2130,211632130 Denso:228000-9180,2280009180,228000-9181,2280009181,228000-9182,2280009182,228000-9183,2280009183 Lester:18425 Arrowhead:SND0284 J & N Automotive:410-52171,41052171 MES - Marine Electric Suppliers:18425N Wilson Heavy Duty:91-29-5589,91295589 Dixie Electric:S-80204,S80204
Specification:
Type: PMGR Voltage: 12 Volts kW: 0.6 kW Rotation: CCW Teeth/Splines: 9 Teeth/Splines Pinion/Splines OD: 28.5 mm / 1.122 in Mounting Hole 1: M8-1.25 ID Threaded Mounting Hole 2: M8-1.25 ID Threaded
Fit for Kawasaki Engine: FD671D,FD711D,FD750D,FD791D,FD795D
